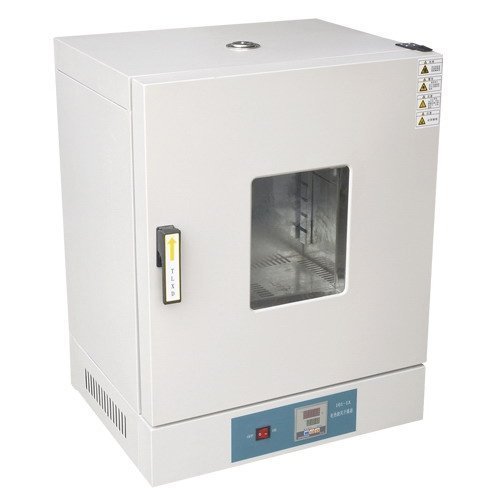

Digital hot air oven laboratory electric oven, product description, model no. Lab-5200, certified : an iso

:9001:2008 certified, digital micropresser pid controller , specification (three side heating elements) standard double wall fabrication, inner chamber made of richly anodized aluminum or highly polished aluminum chamber Exterior fabricated out of thick milled steel sheet duly finished in white stoving enamel powder coated paint with mat finished colour combinations. Kanthal wire heating elements provided on three sides to attain quick and uniform heating in range of 50 c to 250 c, 2 c, controlled by capillary type thermostat. J-shaped sensor is built-in type. Control panel is provided with selector switch of high or low rates of power thermostat control knob and indicators for mains & thermostat. Supplied with cord and plug. The equipment is suitable to operate on 220 vac 50 hz single phase, size : 300mmx 300mm x300mm, digital temp.controller

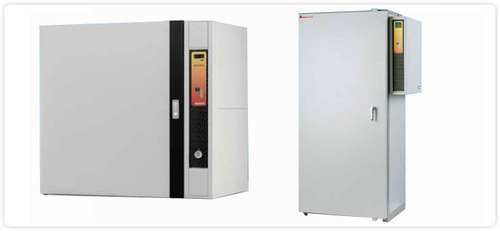

Hot Air Oven Memmert

We offer hot air laboratory ovens that are used in a variety of thermal processing applications including general lab work, component and stability testing, core hardening, drying glassware, and sterilizing.

These are available in various specifications thus meeting the varied needs of our clients. Some of the features are as follows:

• Double Walled – Outer MS – Inner MS or St.Steel.
• 80/20 Ni Heating Elements placed at two vertical sides in addition to the bottom one for uniform heating in the chamber.
• Fan arrangement for forced air circulation through out the chamber.
• Temp. Range : 5ºC above ambient to 300ºC 2ºC
• 230V AC 50HZ Mains Supply.
• Digital Temperature Controller.

Models Chamber H x W x D (cms) Watts Shelves

tilizing forced air circulation, hot air ovens are used in laboratories to perform effect of ageing on various physical properties of any type of materials including yarns, fabrics and paper etc; in addition, these forced air convection ovensare also used for high quality drying and baking applications in the field of laboratory, medical or biomedical and pharmaceutical and textile industries, where fast heat up and consistent temperature are prime requisite. Often known as hot air circulating ovens, these units are fitted with blower or fan inside in order to distribute hot air (warm air) in every corner of the inner chamber. Physical properties of materials are analyzed before and after ageing in order to find out their suitability for specific applications.

Our hot air oven systems offer continuous temperature up to 250°C and feature safe operation; allowing operators to worry-free perform their tests. Standard models of our hot air ovens are available from 22 liters to 300 liters volume; however, we can design and manufacture hot air ovens meeting customer provided temperature range, sizes and capacities. There are various optional accessories that our company can add on extra cost in order to make your working more comfortable. Under economical price, our hot air ovens deliver superior quality drying facilities.

Features:

Temperature:

All hot air ovens provide temperature range 5°C above ambient to 250°C with accuracy of ±2°C. Temperature is controlled with mechanical temperature control (rotary knob) or by digital control (PID controller). For uniform rotation of heat inside the chamber noise-less fan is used for air circulation.

Construction:

Each hot air oven is produced with double walled construction and made of 304 grades stainless steel with insulation of mineral wool for efficient thermal loss. In economical models, exterior chamber is made of powder coated MS, while 304 stainless steel is used as an option. Inner chamber is completely made of stainless steel, which is easy to clean and maintain. Shelves are made of painted steel and can be easily adjusted inside the chamber with ribs created inside the interior chamber walls.

Doors:

Doors are double walled, made of MS steel (stainless steel optional) and also fully insulated with mineral wool, fitted on heavy hinges. Sturdy handle provides comfortable opening and closing. Doors open 180° in order to provide enough access to the heating chamber.

Heating Elements:

For efficient heating, our hot air ovens are fitted with branded heating elements, nickel / chrome plated nichrome wire, kept inside the beads and placed at the bottom and both sides of the chamber.

Ventilation:

For safe removal of hot gases and fumes air ventilators are provided near the top of the both sides.

Safety Features:

For safe operation of hot air oven, several safety instruments are fitted; automatic circuit breaker turns off the unit in case of over temperature and other short circuits. Audio and visual alarms can be fitted as option, alert the user if temperature goes beyond the selection.

Hot Air Oven Dimensions

Optional

Hot Air Oven Specifications

hot air oven manufacturer in India and supplies its hot air ovens all over India and overseas at highly competitive price. In-house engineering team allows customers to discuss their custom specifications, if they need any modifications in hot air oven or need completely a customized hot air oven; each requirement is fulfilled with unmatched quality performance and reliability.

FURNACE:

Product Description

Chamber made of lab for supporting the heating elements on four sides and backed by high temperature cerwool insulation 220/230 volts or 400/440 volts A.C. The unit has working temperature of 900°C with maximum up to 950°C. and 1100°C with maximum up to 1200°C.

MUFFLE SIZE : (W x H x D)

a) 225 x 100 x 100 ( 9" x 4" x 4")

b) 250 x 125 x 125 ( 10" x 5" x 5")

c) 300 x 125 x 125 ( 12" x 5" x 5")

d) 300 x 150 x 150 ( 12" x 6" x 6")

E) 450 x 225 x 225 ( 18" x 9" x 9") OPTIONAL:-

(ii) Microprocessor PID Digital Temp. Indicator- cum- controller OPTIONAL ACCESSORIES

1. Digital Temperature Indicator-cum-controller.
2. PI Digital Temperature Indicator-cum-Controller.

Industrial Oven

The various features of Industrial Oven are:

Construction: Double walled constructed exteriors which are made of substantial gauge CRCA sheets and stainless steel AISI 304(STD model) interiors. With yarn filling fibreglass, these doors have smooth moving hinges with sealing silicone gaskets feature which is appropriate for locking. Heaters: The cambers are equipped with Tabular Heaters which supply maximum heat transfer.Air Circulation: These cabins are designed in such a way that appropriate air circulation

should be there. A recirculation blower contains blower competence that depends upon the model and size of the dryer.Temperature Range: The temperature range of these cabins ranges between 50°C to 150°C/250°C.Damper: Cabins are equipped with adjustable exhaust dampers which are used for pre-filtration of air.Some of the features of these tray dries are:

• Construction : Double walled construction , Exterior made of thick gauge CRCA sheets & Interior made of stainless steel AISI 304 (STD model). Exterior and Interior made of stainless AISI 304 (GMP Model). Fiber glass wool insulation. Doors are provided with smooth moving hinges with sealing silicone gaskets. Suitable locking is provided for the doors.
• Air Circulation: Air circulation is provided with specially designed recirculation blowers inside
• the blower capacity depends on the size and model of dryer.
• Heaters: Tubular Heaters are provided inside the chamber for maximum heat transfer.
• Temperature control: Preset dual display digital temperature controller fitted with control
• panel.
• Trays & Trolleys: Trays are available in S.S.304 /316 /Aluminum as per requirement. Trolley provided in the dryers to accommodate trays in it (Racking system or Moving type)
• Control Panel: Digital controller, timer, on & Off Switch, Operating push buttons are
• incorporated in the control panel.
• Damper: Adjustable exhaust Damper with an arrangement for pre-filtration in the air
• inlet.
• Temperature Range: 50°C to 150°C/250°C
